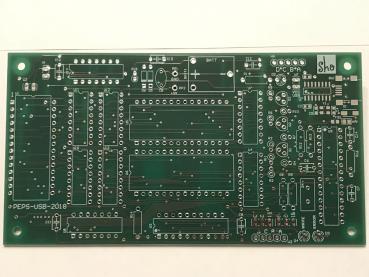

SHOEMU3 EPROM Emulator 2716 to 27512 SMD-PCB
TOP
New Version EPROM Emulator SHOEMU3 Version 3.
This version is a further development of SHOEMU2.
- new microcontroller AVR64DA28-I/SP
- Debug port for microcontroller
- Clock via clock oscillator
- Integrated pull-up for A8 to A15
- Reset for SRAM ( 128KB x 8 ) improved
Software for Windows of the SHOEMU2 is compatible with SHOEMU3.
There will be a version with only assembled SMD circuit boards and a version as a ( kit Juli/2024 ).
SHOEMU3-OK.pdf ( Circuit diagram, assembly, mechanics, parts list )
SHOEMU3-Firmware.zip ( HEX-File, ELF-File )

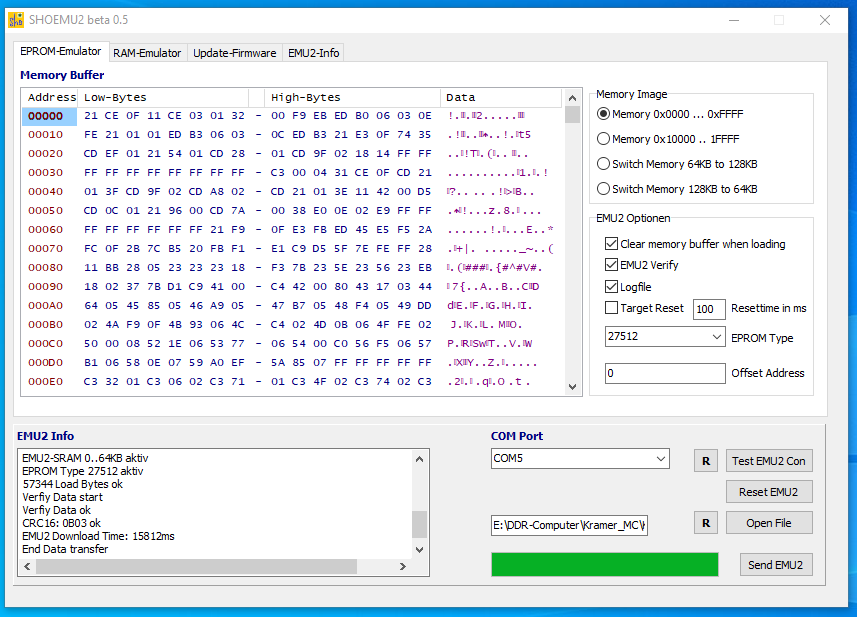

SHOEMU3-Windows-Software.zip ( WIN7, WIN8, WIN10 ) (new version 05 , 12.11.2023 )
This version is a further development of SHOEMU2.
- new microcontroller AVR64DA28-I/SP
- Debug port for microcontroller
- Clock via clock oscillator
- Integrated pull-up for A8 to A15
- Reset for SRAM ( 128KB x 8 ) improved
Software for Windows of the SHOEMU2 is compatible with SHOEMU3.
There will be a version with only assembled SMD circuit boards and a version as a ( kit Juli/2024 ).
SHOEMU3-OK.pdf ( Circuit diagram, assembly, mechanics, parts list ) SHOEMU3-Firmware.zip ( HEX-File, ELF-File ) SHOEMU3-Windows-Software.zip ( WIN7, WIN8, WIN10 ) (new version 05 , 12.11.2023 )
