PLCC44-DIP40-Adapter Z8
NEW

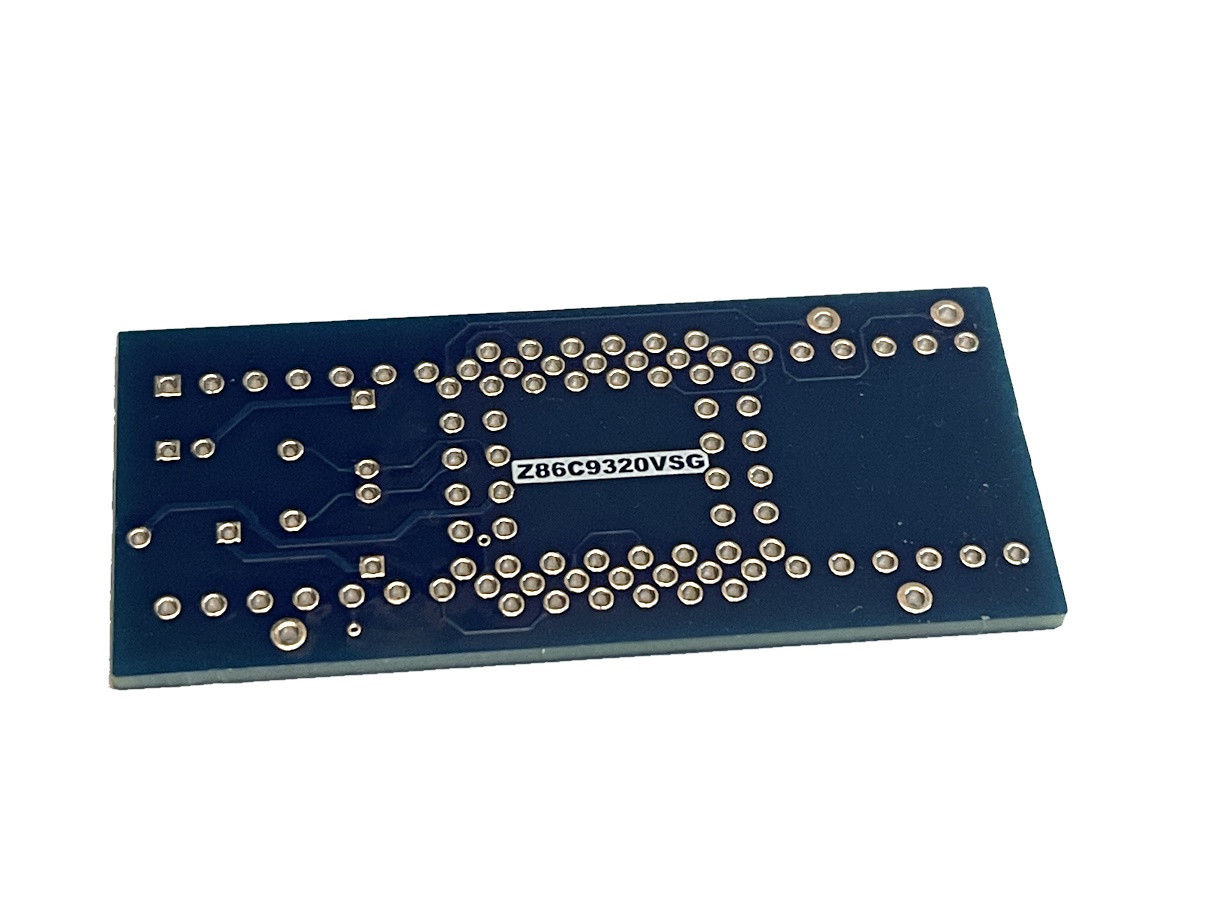

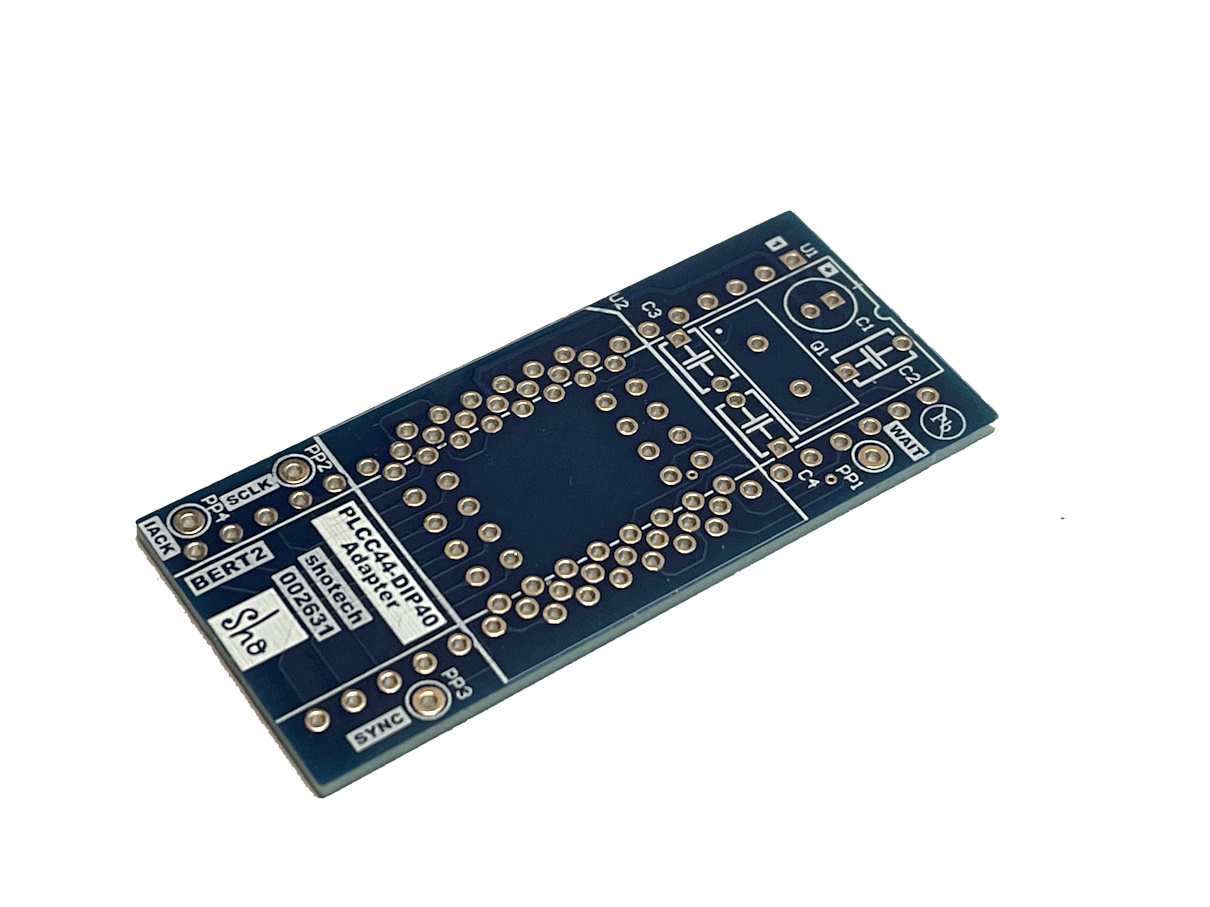

PLCC44 to DIP40 adapter specifically for the Z86C9320VSG in the PLCC44 housing. (BERT2)
The following electronic components can also be fitted on the circuit board.
1 x Crystal
2 x 22pF capacitor (or depending on the Crystal )
1 x 100µF electrolytic capacitor
1 x 100nF capacitor
The relevant information can be found in the circuit documentation.
The following variants can be ordered:
PCB: only the circuit board

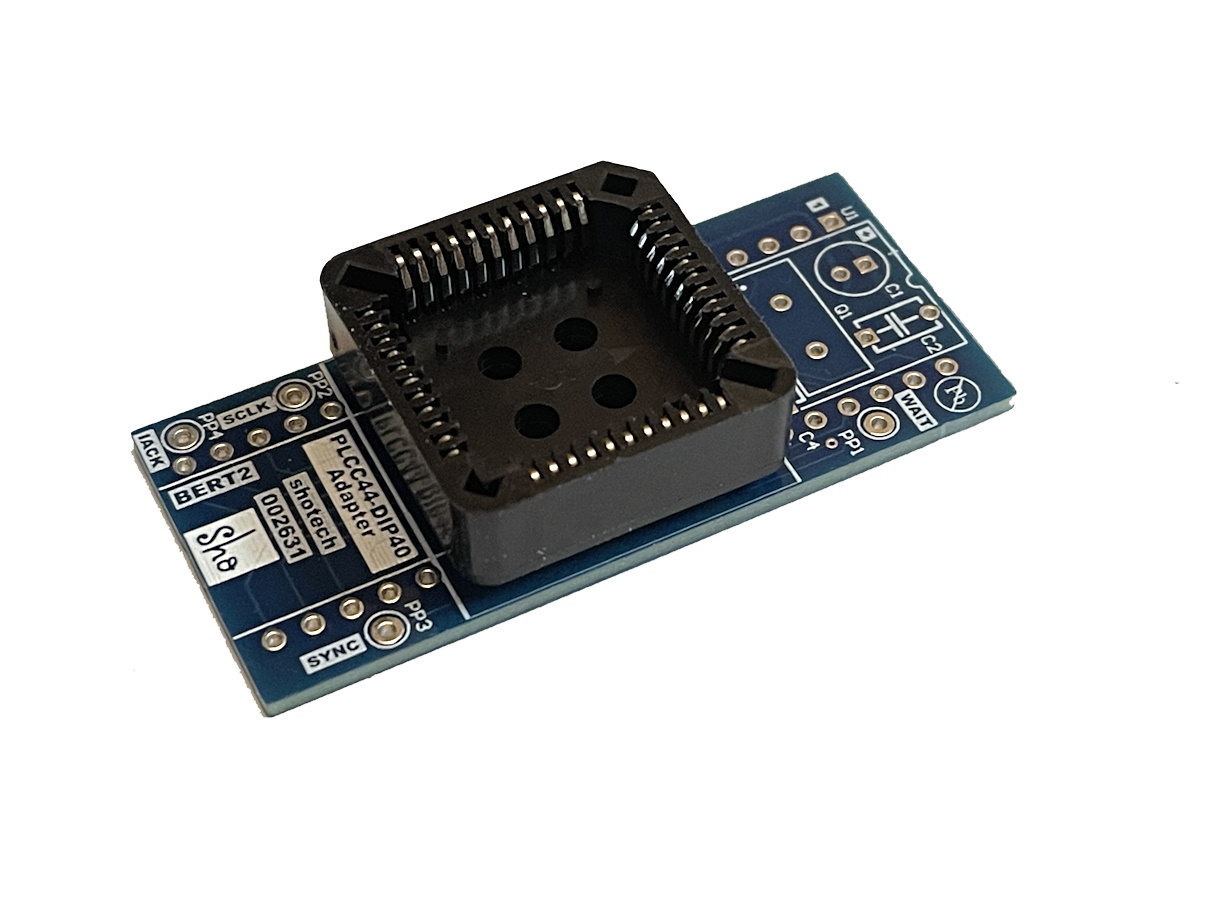

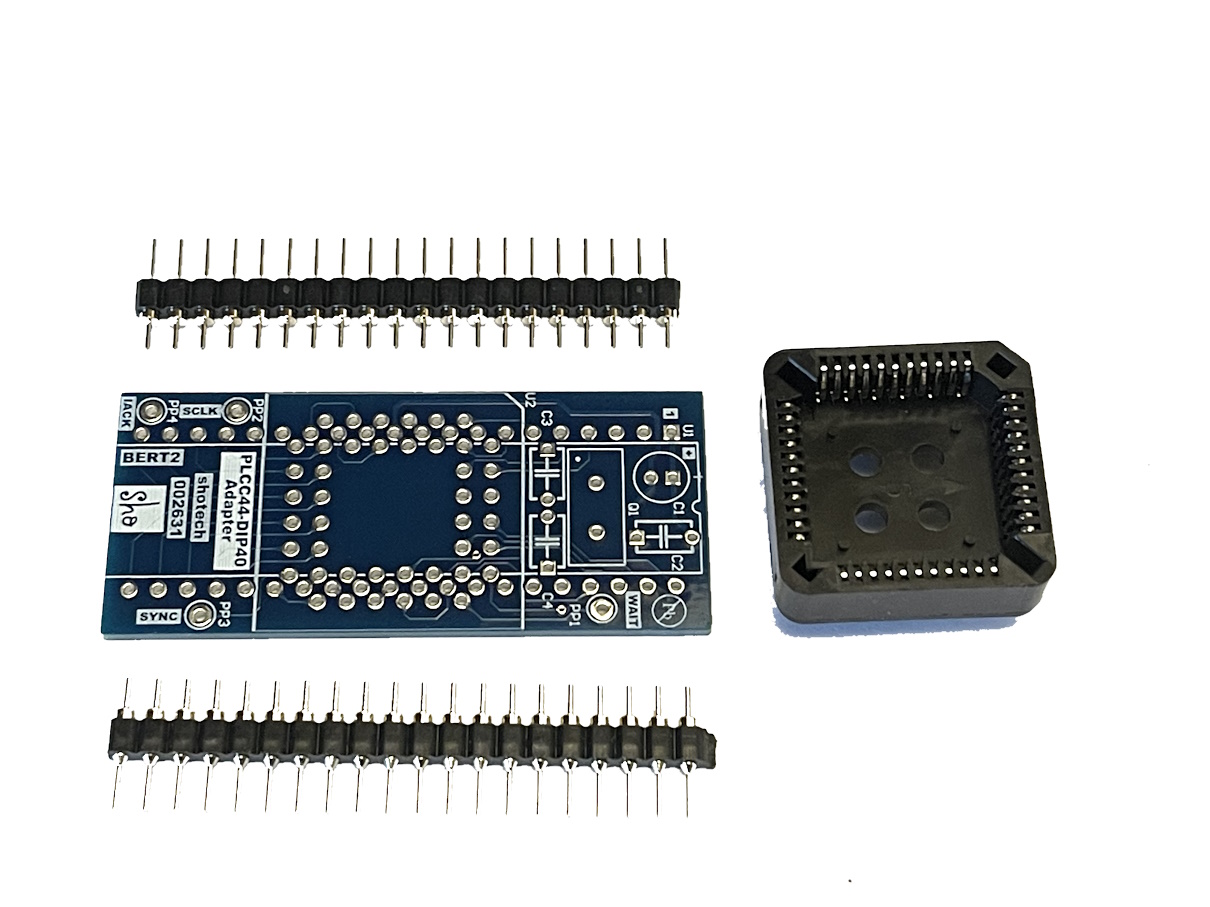

Kit: circuit board, PLCC44 socket, 2x precision connector strip 20-pin.
PLCC44 Adapter Schematic.pdf
The following electronic components can also be fitted on the circuit board.
1 x Crystal
2 x 22pF capacitor (or depending on the Crystal )
1 x 100µF electrolytic capacitor
1 x 100nF capacitor
The relevant information can be found in the circuit documentation.
The following variants can be ordered:
PCB: only the circuit board
Kit: circuit board, PLCC44 socket, 2x precision connector strip 20-pin.
PLCC44 Adapter Schematic.pdf
