NUC2401MNTAG

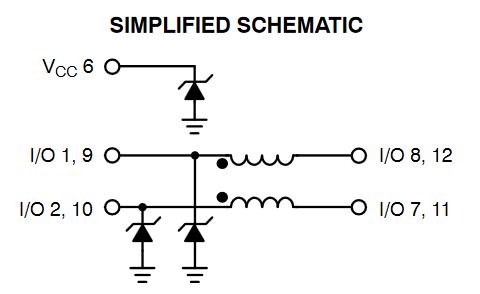

Common Mode Choke with Integrated ESD Protection
Features
• Common mode EMI Filtering and ESD Protection
• Integration of 5 Discrete components
• ±12 kV ESD Protection per IEC61000−4−2 (Contact Discharge)

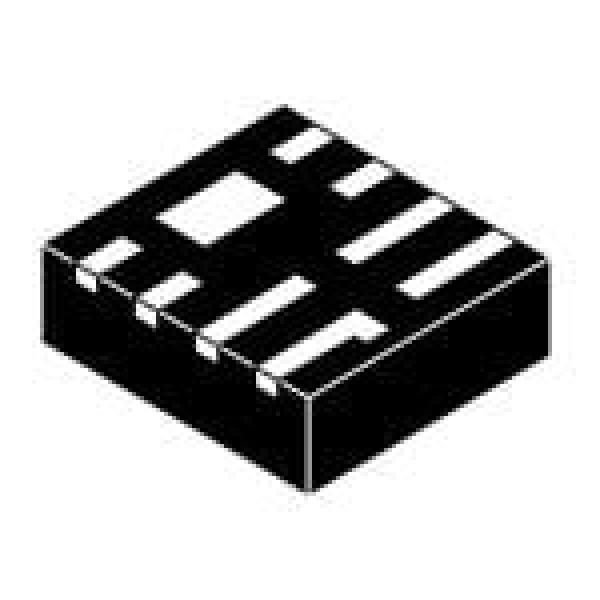

• DFN: 2.0 x 2.2 mm Package
• Moisture Sensitivity Level 1
• ESD Rating: Machine Model (MM) = 1.6 kV;
Human Body Model (HBM) = 16 kV
• This is a Pb−Free Device
DC: 1042
Applications
• High Speed Differential Data Lines
• USB2.0
• IEEE1394
• LVDS
• MIPI
• MDDI
NUC2401MNTAG.pdf
