SMD Common Mode Line Filter 744207

Product No.:: 000967
Shipping time:: ca. 3-5 days (abroad may vary)
Stock:: 100 pieces
RoHS:: yes
Delivery:: Cut Tape
Country of origin:: CN
HS code:: 85045000

2,20 EUR

incl. 19% tax excl. Shipping costs

Add to wish list

Ask about product

Description

Description

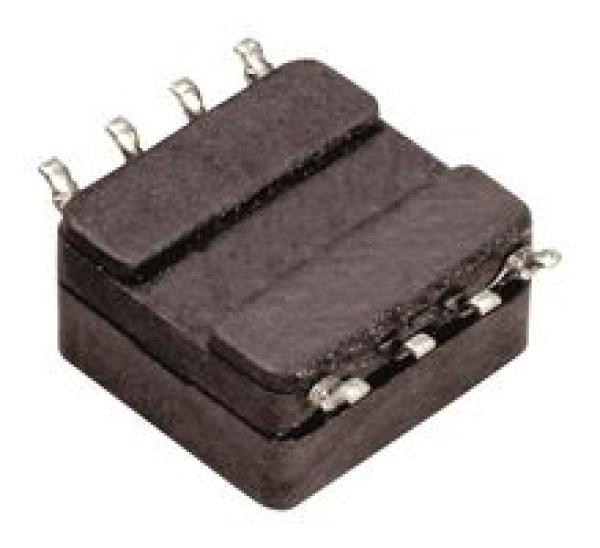

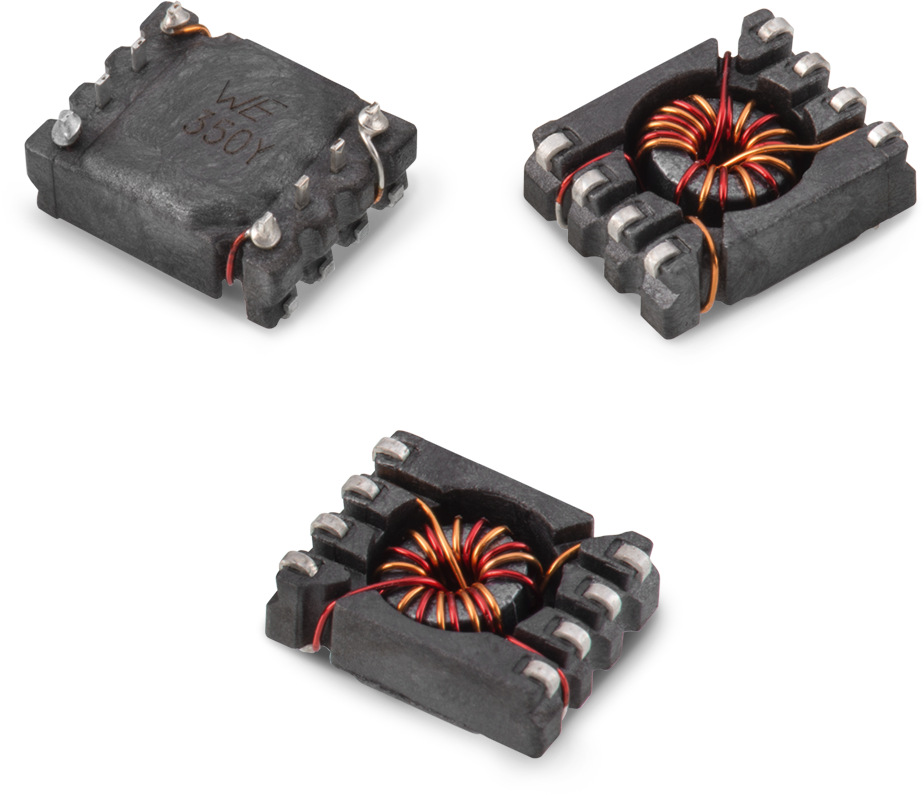

WE-SL SMD Common Mode Line Filter

744207
WE-SL SMD Common Mode Line Filter
Winding Style: bifilar
Inductance : 2x 35µH
Toleranz : ±35%
Maximum Impedance: 1100 Ohm
Rated Current: 2,7A
DC Resistance: 2 x 0,035R
Leakage Inductance: 63nH
Insulation Test Voltage: 500V (AC)
Rated Voltage: 80V

Characteristics

    Two or four winding configuration
    Core material: NiZn/MnZn
    Rated voltage: 80 VDC (42 VAC)
    Flammability corresponding to UL 94 V-0
    Climatic category 40/125/21

Applications

    Current compensated choke for data and signal lines
    Power supply system
    Signal and sensor lines
    Suppression of common mode noise
    ISDN-Bus
