S1D13743F00A200
The S1D13743 is a WQVGA color LCD controller with an embedded 464 KB display buffer.
supports a 8/16-bit Intel 80 CPU architecture.
Resolutions supported include 480x272@24bpp single buffered or 320x240@24bpp double-buffered.
• Embedded 464 KB SRAM display buffer
• Low operating voltage
• 8/16-bit Intel 80 interface (used for display or register data)
• Input data formats: RGB 8:8:8, 6:6:6, 5:6:5 and YUV 4:2:2, 4:2:0
• All input data is converted and stored as RGB 8:8:8
• Supports TFT panels
• RGB interface: 18/24-bit
• Supports resolutions up to 352x440
• Hardware / software power save mode
• 24 bpp color depths
• COREVDD 1.5 volts IOVDD 1.65 ~ 3.6 volts

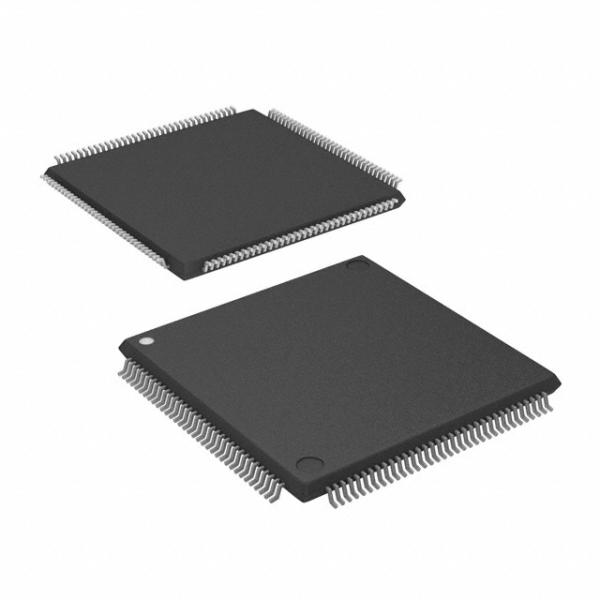

• QFP20 144-pin package
S1D13743.pdf
