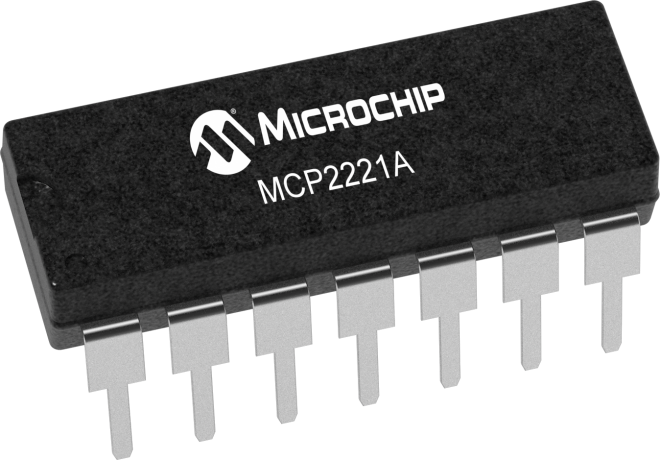

MCP2221A-I/P - USB 2.0 to I^2C/UART Protocol Converter with GPIO
The MCP2221A is a USB-to-UART/I2C serial converter which enables USB connectivity
in applications that have a UART and I2C interfaces. The device reduces external
components by integrating the USB termination resistors and the oscillator needed
for USB operation. The MCP2221A also has four GP pins providing miscellaneous
functionalities (GPIO, USBCFG, SSPND, Clock Output, ADC, DAC, interrupt detector).
Supports full-speed USB (12 Mb/s)
Communication Device Class (CDC) for communications and configuration
Human Interface Device (HID) for I2C™, chip control and configuration
64-byte Transmit
64-byte Receive
64 byte buffer to handle data throughput at any I2C™ baud rate
Fully configurable VID and PID assignments, and string descriptors
Bus-powered or self-powered
USB 2.0 Compliant
USB Driver and Software Support
CDC and Universal Asynchronous Receiver/Transmitter (UART) Options
I2C™/SMBus
General Purpose Input/Output (GPIO) Pins
Highly Configurable
Operating voltage: 3.0 – 5.5V
Electrostatic Discharge (ESD) protection:
4 kV Human Body Model (HBM)
Industrial (I) Operating Temperature: -40°C to +85°C
DC: 03/2020
Package: DIP14
MCP2221A.pdf
MCP2200/MCP2221 Windows Driver & Installer
MCP2221 Command Line Interface (v1.0.2)
MCP2221 DLL
I2C/SMBus Terminal (v2.0.1)
MCP2221 Utility (v1.0.1)
in applications that have a UART and I2C interfaces. The device reduces external
components by integrating the USB termination resistors and the oscillator needed
for USB operation. The MCP2221A also has four GP pins providing miscellaneous
functionalities (GPIO, USBCFG, SSPND, Clock Output, ADC, DAC, interrupt detector).
Supports full-speed USB (12 Mb/s)
Communication Device Class (CDC) for communications and configuration
Human Interface Device (HID) for I2C™, chip control and configuration
64-byte Transmit
64-byte Receive
64 byte buffer to handle data throughput at any I2C™ baud rate
Fully configurable VID and PID assignments, and string descriptors
Bus-powered or self-powered
USB 2.0 Compliant
USB Driver and Software Support
CDC and Universal Asynchronous Receiver/Transmitter (UART) Options
I2C™/SMBus
General Purpose Input/Output (GPIO) Pins
Highly Configurable
Operating voltage: 3.0 – 5.5V
Electrostatic Discharge (ESD) protection:
4 kV Human Body Model (HBM)
Industrial (I) Operating Temperature: -40°C to +85°C
DC: 03/2020
Package: DIP14
