MIDI Sound Generator BU8793KN-E2
MIDI and ADPCM Sound
• Generating 16 harmonies simultaneously: 128 sounds + 47 drum sets + special sounds
• Integrated ADPCM decoder, can be mixed with wave generator output signals
• FIFO buffer and sequencer to reduce CPU load
• Integrated FIFO buffer for downloading music data
• 512 bytes FIFO buffer for sound source data ( MIDI )
• 256 bytes FIFO buffer for ADPCM data
• Stereo sound available
• Pitch bend and vibrato
• Integrated stereo DAC
• Integrated 2nd order filter (fC = 20 kHz)
• Power down mode
• Serial host CPU interface
• QFN28V package
Wir entwickeln für Sie die entsprechende Software zu diesen Baustein BU8793 . Fragen Sie uns an !
Software für AVR ( Atmel/Microchip ) und ARM® ( Cortex® M0, Cortex® M0+, Cortex® M3 und Cortex® M4 ) . ( C - Programming )
BU8793
QFN28V
• Generating 16 harmonies simultaneously: 128 sounds + 47 drum sets + special sounds
• Integrated ADPCM decoder, can be mixed with wave generator output signals
• FIFO buffer and sequencer to reduce CPU load
• Integrated FIFO buffer for downloading music data
• 512 bytes FIFO buffer for sound source data ( MIDI )
• 256 bytes FIFO buffer for ADPCM data
• Stereo sound available
• Pitch bend and vibrato
• Integrated stereo DAC
• Integrated 2nd order filter (fC = 20 kHz)
• Power down mode
• Serial host CPU interface
• QFN28V package
Wir entwickeln für Sie die entsprechende Software zu diesen Baustein BU8793 . Fragen Sie uns an !
Software für AVR ( Atmel/Microchip ) und ARM® ( Cortex® M0, Cortex® M0+, Cortex® M3 und Cortex® M4 ) . ( C - Programming )

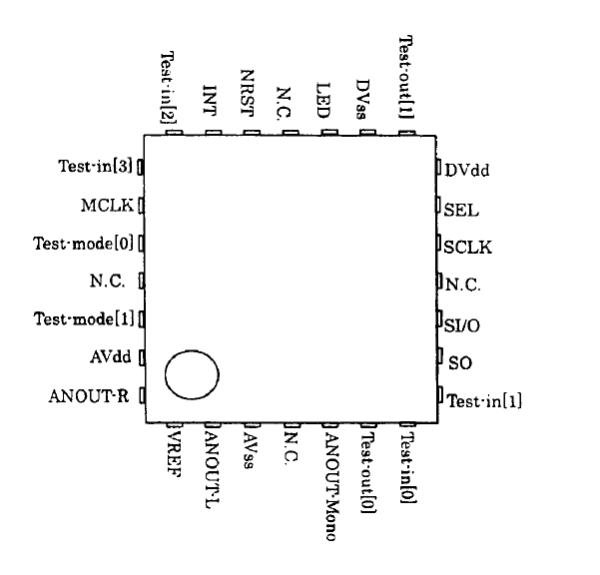

BU8793 QFN28V
- Eagle 5.11 Symbol and Footprint (3.43 KB)
