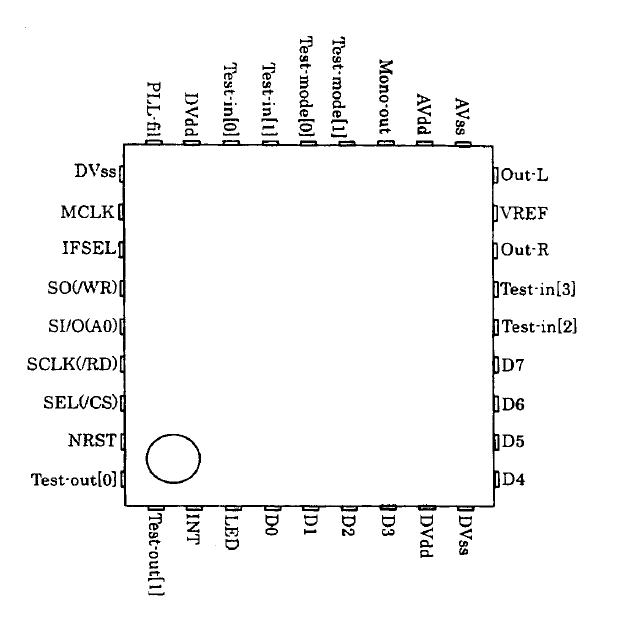

BU8788KN-E2
MIDI and ADPCM Soundcontroller , 2,7V bis 3,6V
• Generating 32 harmonies simultaneously: 128 sounds + 47 drum sets + special sounds
• Integrated ADPCM decoder, can be mixed with wave generator output signals
• FIFO buffer and sequencer to reduce CPU load
• Integrated FIFO buffer for downloading music data
• Stereo sound available
• Pitch bend and vibrato
• Integrated stereo DAC
• Integrated 2nd order filter (fC = 20 kHz)
• Power down mode
• Serial host CPU interface
BU8788KN.pdf

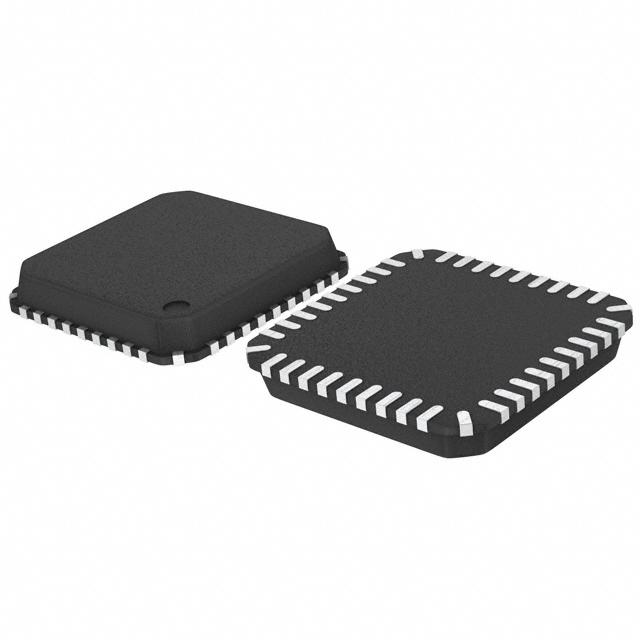

vqfn36_01-e.pdf
• Generating 32 harmonies simultaneously: 128 sounds + 47 drum sets + special sounds
• Integrated ADPCM decoder, can be mixed with wave generator output signals
• FIFO buffer and sequencer to reduce CPU load
• Integrated FIFO buffer for downloading music data
• Stereo sound available
• Pitch bend and vibrato
• Integrated stereo DAC
• Integrated 2nd order filter (fC = 20 kHz)
• Power down mode
• Serial host CPU interface
BU8788KN.pdf vqfn36_01-e.pdf
- Eagle 5.11 Symbol and Footprint (3.43 KB)
